Infrared night vision goggles with Russiam Gen2+ or Europe Gen 3 image intensifier

FOB Reference Price:Get Latest Price
30 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Centurion systems
Model Number:
OHB-Y
color:
black
Supply Ability
Supply Ability:
500 Unit/Units per Month
Packaging & Delivery
Packaging Details
Carry case and hard case
Port
Shenzhen
Lead Time :
45 days



About company

Centurion Systems is well-known brand for military use night vision in USA. Gen 2+ and 3 devices have been widely used in American army and police sectors owing to high quality ,Centurion Systems mainly adopts Image intensifier tubes from ITT, Photonis and DEP. Business scope includes night vision monocular, night vision goggles, night vision rifle scopes,super low light NV, and digital NV with colorful etc.



ROE is specializing in night vision devices as core business. Recently we are developing ultraviolet light,visible light,thermal images etc fields,and bringing so many expertise,professor and technology doctor etc complex human rescources. We own many patent and self-owned brands.



PRODUCTION OVERVIEW



Image Intensifier Tube –Generation 2+ or Europe Generation 3, power supply with built-in bright flash protection (with automatic brightness gain regular.)

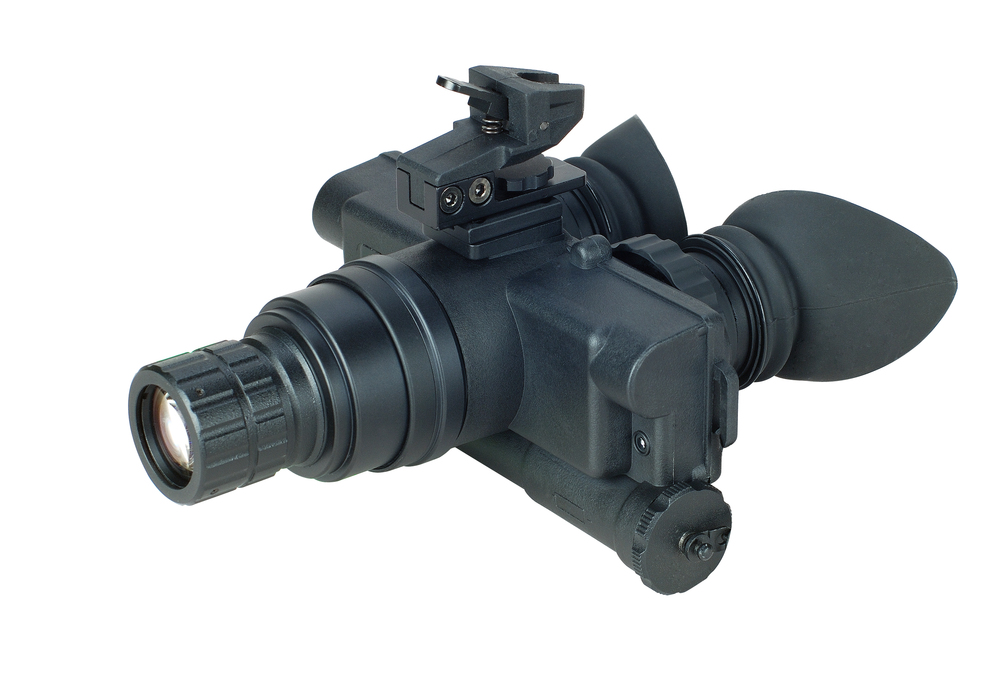

OHBY is a kind of night vision goggles which can be viewed by two eyes and can be mounted with helmet,small in size,light in weight. Magnification can be changed by replacing different objective lens, 1x and 3x and 5x are available.Other objective lens with different focal distance can be also provided to meet your needs.It also can be used as hand held for observation in the night.



It adopts Russian Gen2+ or Europe Gen3 image intensifier tube with the function of anti-glare and built-in IR Illuminator.It is mainly used for military observation,sea defense,frontier reconnaissance,surveillance, suppress smuggling, drug smuggling investigation and vehicles and aircraft maintenance under dark condition etc.).









FEATURES

+Small in size, compact rugged Goggle system

+Multi-purpose: Hand-held, head-mounted or helmet mounted

+Comfortable, flip-up headgear,reliable and

+Multi-coated all-glass optics,superior resolution

+Wide angle infrared illuminator,long range viewing

+Optional 3x, 5x and 8x lenses available

+Waterproof Weather and fog resistant

+Limited one-Year Warranty





SPECIFICATIONS



GENERAL

Magnification, x

1

Field of view, deg

40°

Lens system

26.8mmF/1.2

Adjusted Interpupillary distance, mm

 Yes

Focus range, m/in

 0.25 / 10” to infinity

Eye relief distance, mm

15

Diopter setting, D

+5, -6

Overall dimensions, mm

160x150x75

Weight w/out headgear, g/oz

510 / 17.99

Power supply

1x CR123 Lithium batteries, 3V

Estimated battery life w/out IR, 73°F, hour

up to 80



GEN III / GEN II IMAGE INTENSIFIER TUBES

Classification

OMNI III, IV

OMNI II

Photocathode type

18mm GaAs

18mm S-25

Photocathode sensitivity, typical, μA/lm

1800

550

Resolution, typical, lp/mm

63-72

 48-58/57-64/60-72

Luminous gain, typical, fl/fcd

45000-55000

16000-25000

Signal-to-noise ratio, typical

23:1 or better

20:1 or better

FOM, typical

1500

              1150

Tube reliability standard, hour

12000

10000

Keep time, typical, year

15

10

Warranty, year

2



EFFECTIVE DISTANCE

 Detection range, approx.,  m/yard
                 -quarter moon
                 -cloud cover


up to 275/300
up to 240/275


up to 200/220
up to 125/140

Recognition range, approx., m/yard
                -quarter moon
                -cloud cover


up to 225/245
up to 150/165


up to 175/195
up to 100/110

 5mW IR illuminator, approx., m/yard

up to 30/12





ENVIRONMENTAL DATA

Operating temperature, °C/°F

−40° to +50°/-40° to +122°

Storage temperature, °C/°F

0° to +50°/32° to +122°

Immersion, hour

2 meter for 1.0 (Optional)

Humidity, %

up to 98%

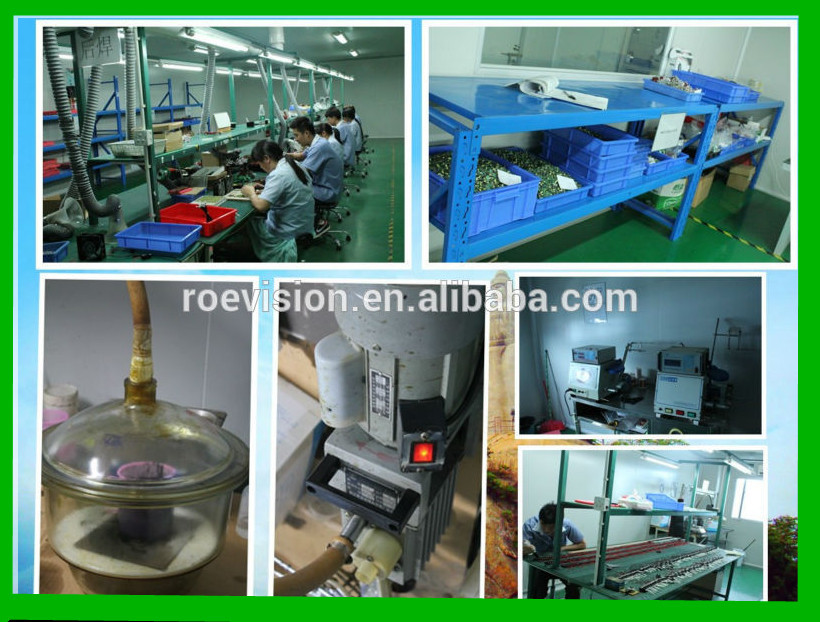

Work shop
