Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: RongLand
  • Model Number: OHR1-100-3/6
  • Size: 350x155x112mm, 350x155x112mm
  • Weight: 1.5kg
  • Type: Binocular
  • Magnification: 4.1-6.8, 4.1/6.8x
  • Effective Visual Distance: 3000m
  • Operating Voltage: 5.0v
  • OLED display: Yes
  • Video out: Yes
  • Long range distance: Yes
  • Day & night use: Yes
  • Sensor: 384x288/640x480

Packaging & Delivery

Packaging Details Carton and hard box
Delivery Time Shipped in 5 days after payment

Introduction of company



Ronger Optic & Electronic (ROE) is a professional hi-tech enterprises specializing in R&D, manufacture, distribution for Night Vision Devices & other optical products, and it was awarded Nation Hi-tech enterprise certificates..........





Profile of company









Certificates of company

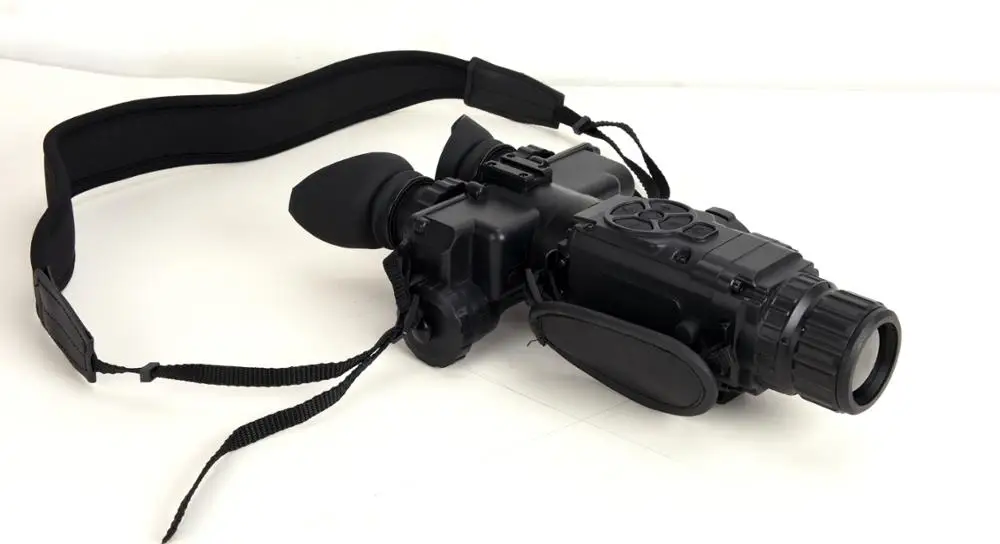

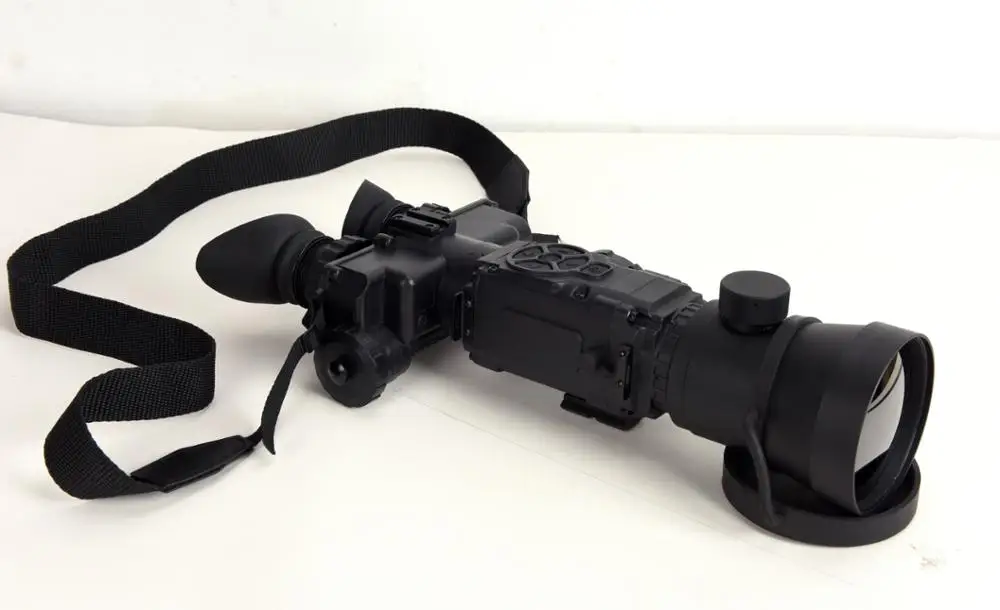

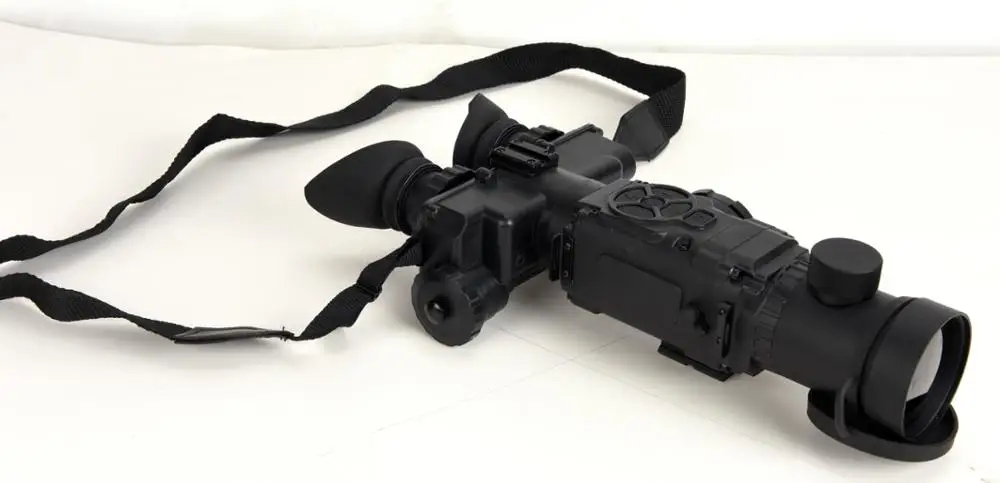

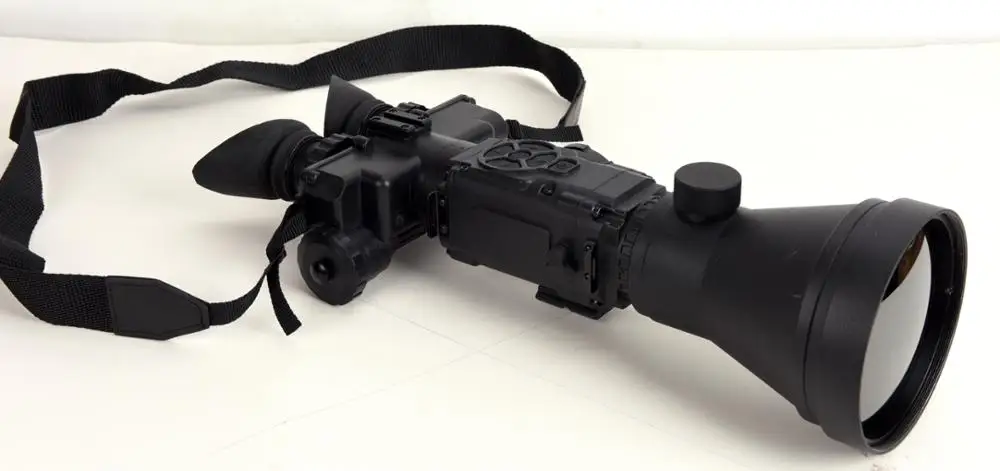

Product photo


















Product Overview



Thermal Images Goggles is the use of modern optoelectronic technology.The investigation for all-weather conditions.Apply to equipped with individual for target detection, etc.

The human eye’s binocular distance is different,This product uses the design of ocular distance is adjustable,that makes user more comfortable.Observe comfortable, observation distance.



Features:

Light weight and compact design

Thermal imaing goggles type

Optical zoom 1.4x/6x

Multiple color modes

E-Zoom 7x-24x

Waterproof



Specification:

Model#

ZK2-OHR-35-3/6

ZK2-OHR-50-3/6

ZK2-OHR-75-3/6

ZK2-OHR--100-3/6

Sensor (microbolometer) :

384x288 /640x480 px

Detector senor type:

Uncooled

Material:

Amorphous silicon

Image Size

(output resolution):

800x600 px

Frame rate:

50 Hz

Display:

Color OLED matrix, SVGA< 800x600

Thermal Sensitivity:

<50 mK

Spectral Response ;

7-14

Lens System:

35 mm

50 mm

75mm

100mm

Field of View:

(H x V) 10.7x8.0°/ 17.7x13.3°

(H x V) 7.5x5.6° /  12.4x9.3°

(H x V) 5.0x3.7° /  8.3x6.2°

(H x V) 3.7x2.8° /  6.2x4.7°

Eye Relief:

52 mm

52 mm

52mm

52mm

Optical Magnification:

2.4/1.4x

3.4/2.0x

5.1 /3.1x

6.8 /4.1x

E-Zoom :

4.8-9.6x/2.8-5.6x

6.8-13.6x / 4.0-8x

10.2-20.4x / 6.2-12.4x

13.6-27.2x / 8.2-16.4x

Diopter Adjustment:

-5 to +5

Distance of the human

 detection:

1000/1250 m

1200/1550 m

1400/1800 m

2550/3180

Distance of the human

Recognition:

40/460 m

500/620 m

600/750 m

1120/1400

Distance of the human

Identification:

270 /320 m

300/370 m

350/460 m

610/760 m

Brightness adjustment :

Manual

Sharpness adjustment :

Automatic

Polarity control :

White hot / Black hot / red hot/green hot/ yellow hot/ Multiple Color Modes

Start up time:

Start up time: <5 sec

Environmental Rating:

Waterproof / Dust proof

Operating temperature:

-40° to +50°C

Storage temperature:

-45° to +85°C

Battery type :

4 x CR123 battery type or 2 x CR123 battery type

Battery Life:

6-8 hrs

Video out :

Optional

Low Battery Indicator:

Yes

Dimensions(mm)

260 x 155 x 73

286x155x76

320x155x90

350x155x112

Weight:

883g

1016g

1210g

1500g

Warranty:

3 years standard



Package:Thermal scope unit,Manual,Cleaning cloth,Hard case















If you want to know more and view more about night vision,please contact us or send mails without hesitating! And also,of you have special requirements about the product,surely we can fit your need own to our devices can be customized!
